Remote Working With IKEv2 VPN

Recent events have forced a lot of workers to work from home, but which one is the most secure and easy to use?

Today we’re looking at IKEv2 and will overview the following:

  • Security
  • Ease of Use
  • Portability
  • Performance


IKEv2 uses multi-layer security due to requiring a certificate and username/password instead of just a pre-shared key.

It can also be linked to a RADIUS server meaning that you can easily control who has access so even if someone obtained the certificate they would need to know an authorised user to be able to gain access.

Due to the multi-layer approach, you can also go one step further than just a certificate and username/password you can link the solution to WatchGuard AuthPoint which is a Multi-Factor Authentication service for additional security.

Ease of Use/Configuration

IKEv2 is widely supported and utilised the native VPN clients built into Windows, macOS, IOS and even Windows Mobile.

Once you have built the configuration on your WatchGuard which is nothing more than a couple of clicks as seen below you can send the file to all users and they simply run the file relevant to there OS which will install the profile and there ready to go.

WatchGuard Remote Working with IKEv2 VPN Configuration

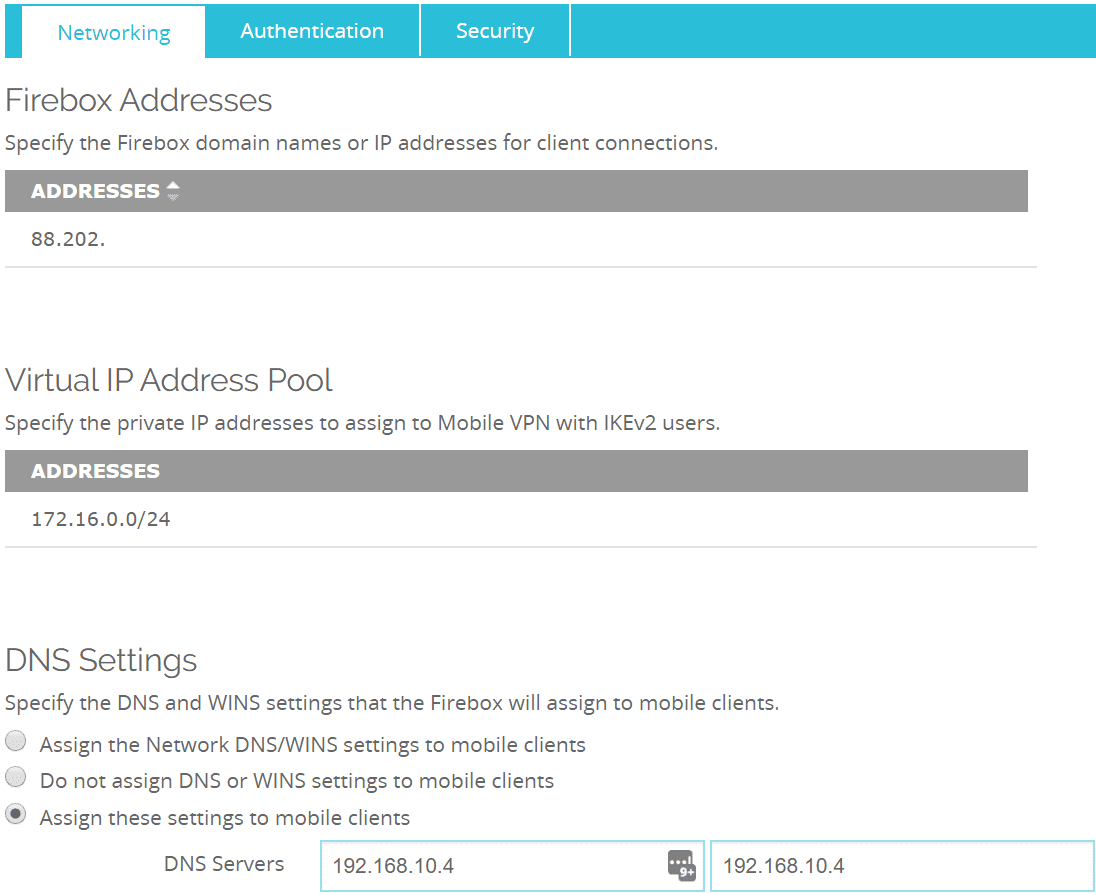

Step 1

Define the Public IP the VPN should connect to and specify the DHCP Pool clients will use along with any DNS settings you wish to impose.

Step 2

Select the authentication server you wish to use along with any local users you may have configured.

WatchGuard Remote Working with IKEv2 VPN Define the Public IP the VPN
WatchGuard Remote Working with IKEv2 VPN 2

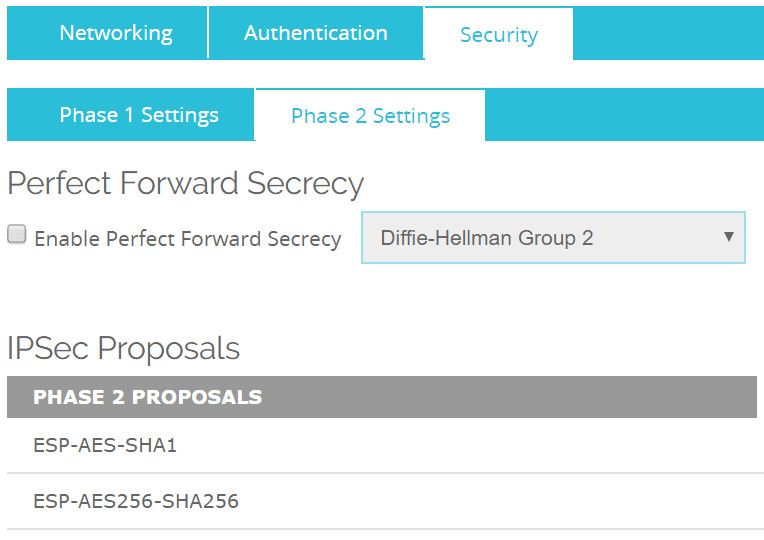

Step 3

Select your security proposals and download the ZIP package which contains the install file and certificates for each different OS

WatchGuard Remote Working with IKEv2 VPN

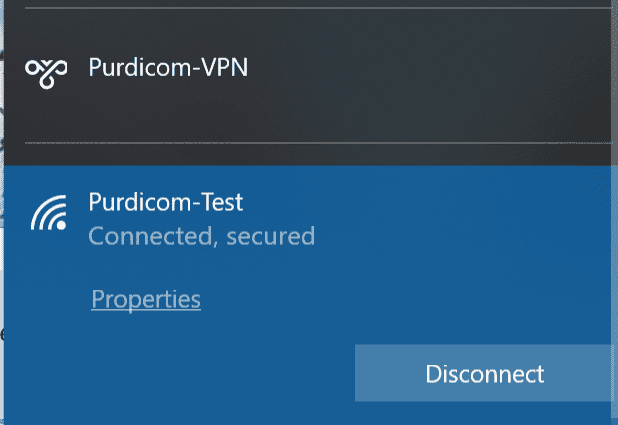

As you can see the VPN is now installed simply click on in and you’re connected.

In this example its using the inbuilt Windows 10 Client

Purdicom VPN Test - WatchGuard Remote Working with IKEv2 VPN


IKEv2 uses IPsec so relies on UDP ports 500, 4500 and ESP IP Protocol 50.

In the rare instance that 4500 is blocked then the VPN connection will not be able to form as IPsec is at the core of the IKEv2 protocol


IKEv2 is a very lightweight protocol and as a result, is typically the least impacting on performance with little overhead also.

It is less intensive on the CPU and also very quick to connect and re-establish if the connection ever drops
