WatchGuard: Built to Withstand Harsh Conditions

WatchGuard’s rugged portfolio designed specifically for harsh environments allows connectivity and security no matter the location.

WatchGuard has you covered, indoors and out

MADE TO THRIVE IN EXTREME CONDITIONS

Today more than ever, people expect Wi-Fi access no matter where they are – outside, camping, even in walk-in freezers. WatchGuard’s access point AP327X is IP67-compliant and tested to withstand the harshest weather conditions, so it can be mounted with direct exposure to the elements – no overhang or shelter is required. Firebox T35-R from WatchGuard is the highest performing industrially hardened compact security appliance available. Traditional firewalls are designed

for office environments or rack-mounted in a climate-controlled server room, where issues with temperature, water and dust are minor. The ruggedised construction of Firebox T35-R means it can be deployed in harsh environments without needing to build a special enclosure. To connect and modernise industrial operations requires a device that can withstand these conditions, ensure effective security, and consistently deliver high performance – the T35-R does this.

WatchGuard Firebox T35-R

Security is complex, running it doesn’t have to be

BUILT TO LAST

Extreme temperature, moisture and dust all reduce the lifecycle and performance of network hardware significantly. With an IP-64-rated industrial enclosure, WatchGuard’s Firebox T35-R is dust and splash-proof, and capable of operating in temperatures of -40° to +60° C. Due to the ruggedised construction of Firebox T35-R you can deploy the appliance in harsh environments without needing to build a special enclosure.

EASY TO UNDERSTAND AND MANAGE

Firebox T35-R is easy to configure and deploy in the first instance, but it is also designed with an emphasis on centralised management, making ongoing policy and network management simple and straight forward. WatchGuard Cloud provides a suite of big data visibility and reporting tools that identify key network security threats, issues, and trends so that immediate action can be taken.

ZERO-TOUCH REMOTE DEPLOYMENT

Firebox T35-R means you do not have to send your team to every location that a device is needed. WatchGuard’s Cloud-based RapidDeploy technology allows you to create and store Firebox configuration data in the Cloud and have an appliance directly sent to its destination. This means a user only needs to plug the device in – RapidDeploy will automatically download and apply the pre-determined configuration.

LAYERED SECURITY FOR INDUSTRIAL CASES

Achieve high levels of operational efficiency without compromising connectivity or security. Breaches of industrial control systems (ICS) can have a significant impact, bringing your business to a halt and even potentially endangering lives. Firebox T35-R includes specific SCADA IPS signatures to protect against well-known exploits of common ICS, making it an ideal choice for remote locations with ICS security needs.

480 Mbps
Firewall

96 Mbps
VPN

203 Mbps
UTM Full Scan

151 Mbps
HTTPS

T35-R

The T35-R offers up to 940 Mbps firewall throughput, 5 x 1Gb ports, 25 branch office VPNs

More Information

Temperature
Operating: -40° C to 60° C
Storage: -40° C to 70° C

Relative Humidity
Operating: 10% to 85% non-condensing
Storage: 10% to 85% non-condensing

Altitude:
Operating: 3,000 m at 35° C
Storage: 4,570 m at 35° C

MTBF:
83,182 hours at 60° C

FEATURES AND BENEFITS

  • The IP64-rated industrial enclosure is dust and splash-proof, and capable of operating in temperatures of -40° to +60° C
  • All logging and reporting functions included with purchase, with over 100 dashboards and reports including PCI and HIPAA
  • 5 Gigabit Ethernet ports support high-speed LAN backbone infrastructure and gigabit WAN connections
  • Variable DC power from 12 to 48 V with optional AC power supply
  • SCADA IPS signatures to protect against well-known exploits of common industrial control systems
  • DIN rail included

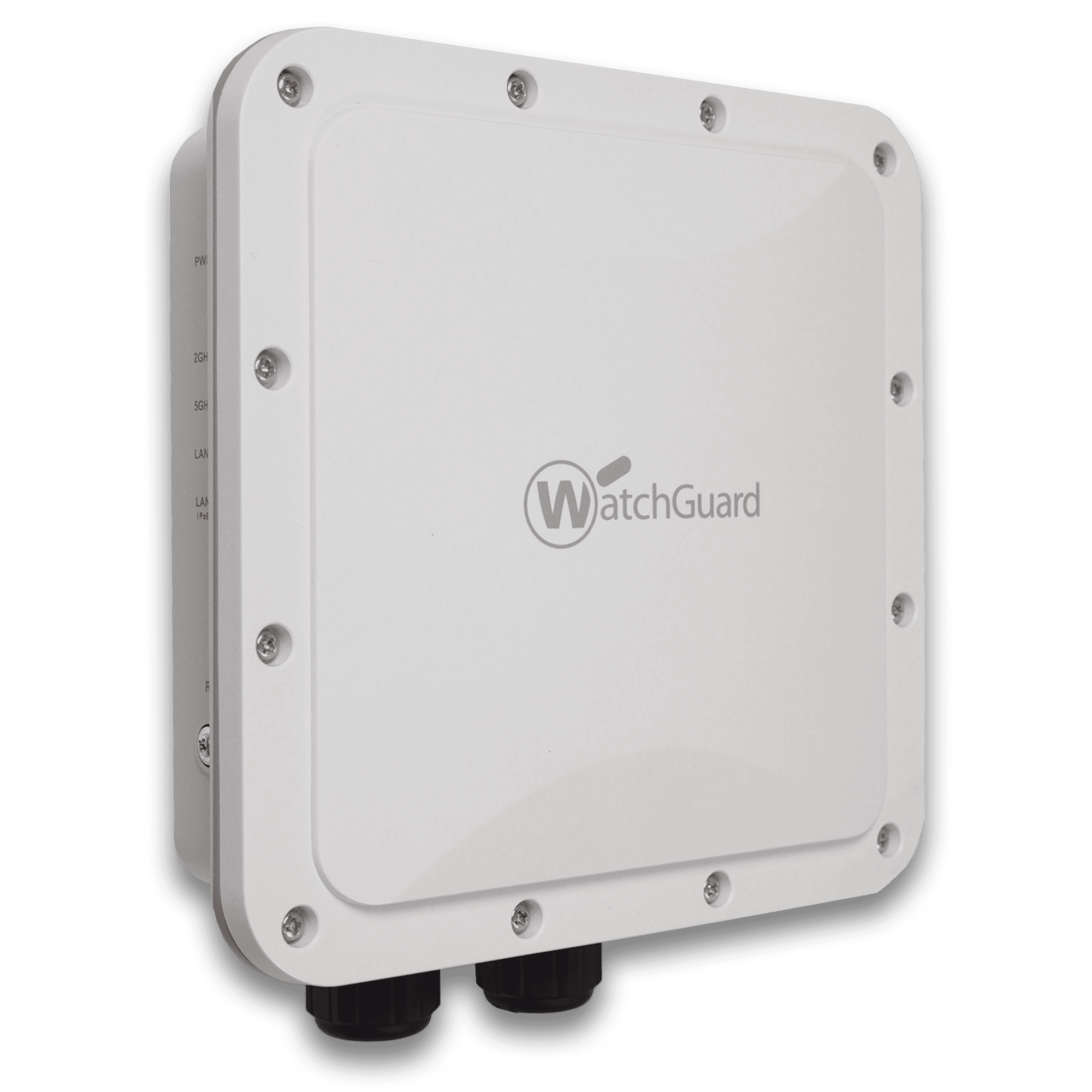

WatchGuard Access Point AP327X

Protect your Wi-Fi network in the harshest environments

WHY THE AP327X?

WatchGuard’s AP327X offers four N-type connectors for flexible antenna coverage capabilities. The AP has an IP67-rated enclosure made for use in the harshest conditions and extends your Trusted Wireless Environment to the outdoors. The AP327X is great for use on university campuses, manufacturing, warehouses, shopping centres, public hotspots and many more.

DUAL-BAND OMNI ANTENNAS

Omni-directional (360 degrees) coverage is great when the AP327X is centrally located and connectivity is required in all directions. Designed to be used with the AP327X outdoor access point and suitable for any access point that supports N-Type connectors. Sold separately in sets of two.

FLEXIBLE MANAGEMENT OPTIONS

WatchGuard’s Wi-Fi Cloud option offers a range of benefits. Access points can be grouped in many ways including location, building, floor and customer to maintain consistent policies. The Wi-Fi Cloud provides real-time insight into the users’ experience and tracks why clients may fail to connect to the network. Wi-Fi Cloud easily scales from one to an unlimited number of access points across multiple locations. IT managers can enjoy an entirely controller-less Wi-Fi management experience including setting up, configuration, monitoring, troubleshooting, and improved corporate and guest Wi-Fi access, without worrying about the limitations of a legacy controller infrastructure.

FEATURES AND BENEFITS

AP327X

The AP327X outdoor access point has 4 N-Type connectors, dual radio, 2 GbE ports, full operational capacity with 802.3at PoE+

More Information

Physical Dimensions
213.9 mm x 213.9 mm x 67.5 mm

Power Consumption
19 W (max) / 11 W (min) / 16 W (avg)

Temperature
Operating: -40° C to 65° C
Storage: 0° C to 45° C

Relative Humidity
Operating: -5% to 95% non-condensing
Storage: 5% to 95% non-condensing

Four N-type external connectors allowing for flexible pattern coverage capabilities (Antennas sold separately).

The support for up to eight individual SSIDs per radio allows for maximum flexibility and options in network design

It takes less than two minutes to activate and configure the AP327X after connecting to the Wi-Fi Cloud

IP67 rated sealed enclosure provides extreme protection and can be mounted with direct exposure to the elements
