Cambium Networks ePMP

The New Standard in Wireless Broadband.

Cambium Networks’ ePMP wireless broadband solutions are unrivalled. Superior point to multi point (PtMP) technology meets your target pricing to provide robust solutions to small & medium sized businesses through enterprise level deployments.

There’s been something missing in wireless broadband. A suite of products that would answer many of today’s connectivity challenges. Something that offers scalability, high-quality performance and reliable access to the under-connected and unconnected. In our new, fast-paced, ever-changing and demanding global economy, dependable connectivity should be for everyone, everywhere. Cambium Networks provides a breakthrough suite of products to meet these challenges; ePMP.

ePMP sets a new standard; an economical connectivity solution that expertly combines high levels of performance with availability and reliability to enable you to build strong and sustainable business across all tiers of your customer base. You no longer have to choose between performance or cost. ePMP delivers all the critical features that service providers, WISPs, enterprises and all your customers demand in order to keep up with today’s network demands.

ePMP Winning Feature Set

GPS Synchronisation

GPS synchronisation capabilities that minimise self-interference for industry-leading performance & scalability as well as low latency. Handle more subscribers per unit without service degradation.

Quality of Service (QoS)

ePMP provides three levels of support, VoIP, Hi-Speed Data & Video. Auto VoIP on the GUI enables automatic voice prioritisation for clear & uninterrupted audio, guarding against garbled speech & choppy video transmissions.

Reliability

Developed and engineered by industry-leading experts and deployed in hundreds of networks worldwide, ePMP solutions are produced using high-quality components and undergo rigorous testing.

Security

Defend against cyber-attacks with Cambiums 128-bit AES encryption, L2 & L3 firewall & anti-cloning software. Mechanisms that support data security.

Ease of Use

ePMP is easy to install, use & manage. Set-up is plug-&-play. It’s fast. It’s simple. The platform’s integrated management software has a simplified GUI and a powerful Element Management System (EMS).

Return on Investment

First-generation networks can be difficult to scale. The ePMP platform allows you to grow & sustain your business, serve exceptional performance to a higher density of subscribers for better and quicker ROI.

High Performance

Optimised beyond basic connectivity. The powerful GPS synchronisation delivers spectral efficiency, extended range, high-throughput & low latency providing reliable transfer of data & video.

Scalability

ePMP’s scalability is driven by leading-edge GPS synchronisation, reducing interference & enabling a high degree of frequency re-use. Take advantage of growth opportunities for a sustainable business model.

Spectral Efficiency

Technology that provides high-spectral efficiency, enabling it to successfully operate within smaller channel widths and comfortably accommodate more users on the same channel.

Throughput

High throughput for more than 200 Mbps of real user throughput. Users can enjoy seamless delivery of bandwidth-intensive services such as high-speed data, VoIP & video.

Long Range

Cambium Networks’ ePMP solutions provide a range of up to 13 miles, helping you connect & serve your most remote subscribers more easily and more profitably.

Flexible Configuration

Can be configured with PtP or PtMP architectures, offering flexibility with an easy & intuitive network management control and view of network topology & performance characteristics.

Cambium ePMP 3rd-Gen Product Range

CAMBIUM ePMP 3000

MU-MIMO support – peak throughput of 1.2 Gbps

Enjoy up to five times performance with Gen3 technology. The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time.

ePMP 3000 Specifications

MU-MIMO support with peak throughput of 1.2 Gbps
256QAM-5/6, 80 MHz support
Supports a wide frequency range: 4910 – 5970 MHz
802.3at compliant 100/1000 BaseT interface
Frequency re-use with GPS sync, interference mitigation with beam-steering antenna and dynamic filtering

Cambium Networks ePMP 3000L quarter view CLIP_Lite

CAMBIUM ePMP FORCE 3000-LITE

2X2 MIMO support – peak throughput of 600 Mbps

A 2X2 MIMO connectorised access point supporting a variety of deployments including 90/120 degree sectors, narrow-sector horns & 360-degree omni-coverage, featuring interference mitigation with TDD synchronization using GPS.

ePMP Force 3000L Specifications

2X2 MIMO support with peak throughput of 600 Mbps
256QAM-5/6, 80 MHz support
Supports a wide frequency range: 4910 to 5950 MHz
Frequency re-use with GPS sync and interference mitigation
Supports up to 64 subscriber modules
Connectorised for use with Cambium Networks 90/120 degree sector antenna. Also compatible with RF Elements Twistport(tm) Adaptor for ePMP
Cloud or on-premises network management with cnMaestro

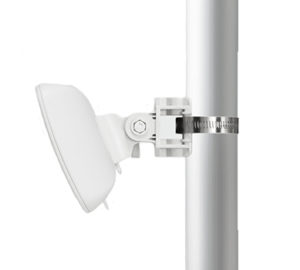

CAMBIUM ePMP FORCE 300-16

Throughput of up to 600 Mbps of real user data

Combining the latest 802.11ac Wave 2 chipset and the field-proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a mid-gain subscriber module for the ePMP 3000 and ePMP 3000L Access Points.

ePMP Force 300-16 Specifications

Designed to operate in high interference environments
Supports channel size configuration from 20 MHz up to 80 MHz and modulates up to 256 QAM
Supports real-time spectrum monitoring without degradation in throughput
Round-trip latency as low as 3-5 ms
Triple-play services – VoIP, video, and data with three levels of traffic priority.
15-degree beam-width and 16 dBi gain
Pole or wall mounting

Cambium ePMP 2nd-Gen Product Range

CAMBIUM ePMP FORCE 180

Delivers >200 Mbps of real user throughput

The ePMP Force 180 Integrated Radio can be configured as a Subscriber Module, an unsynchronised Access Point or a Backhaul radio. This radio will function as a client to an ePMP GPS Synchronised Radio in either a Point-to-Multipoint (PMP) or Point-to-Point (PTP) deployment forming a GPS Synchronised solution.

ePMP Force 180 Specifications

Channel Spacing: Configurable on 5 MHz increments
Frequency range: 5 GHz: 4910 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width: 5 | 10 | 20 | 40 MHz
MAC: (Media Access Control) Layer Cambium Proprietary
Physical Layer: 2×2 MIMO/OFDM
Ethernet Interface: 10/100/1000 BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts
(V+ = 4 & 5, Return = 7 & 8)
VLAN: 802.1Q with 802.1p priority
Quality of Service (QoS): Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

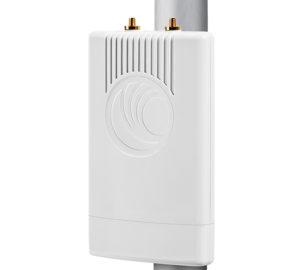

CAMBIUM ePMP 2000

Delivers >200 Mbps of real user throughput

ePMP 2000 has set the standard for high performance, scalability, and reliability in harsh interference environments all at a compelling price point. ePMP 2000 is bringing interference tolerance to a whole new level with unique Hypure™ technology, combining Intelligent Filtering & Smart Beamforming for new levels of performance.

ePMP 2000 Specifications

Channel Spacing: Configurable on 5 MHz increments
Frequency Range: 5150 – 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width: 5 I 10 I 20 I 40 MHz
MAC: (Media Access Control) Layer Cambium proprietary and optionally standard 802.lln
Physical Layer: 2×2 MIMO/OFDM
Ethernet Interfaced: 100/lOOOBaseT, rate auto negotiated, 802.3at compliant
Powering Methods Supported: 56 V PoE (included), standard 802.3at PoE Supply, or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
VLAN: 802.lQ with 802.lP priority
Quality of Service (QoS): Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast, and Station Priority

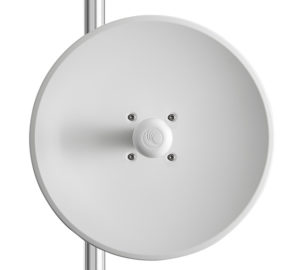

CAMBIUM ePMP FORCE 200

Delivers >200 Mbps of real user throughput

Wireless service providers and enterprises need to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital. The ePMP Force 200 enhances range and improves throughput in high interference environments.

ePMP Force 200 Specification

Channel Spacing: Configurable on 5 MHz increments
Frequency Range: 2.4 GHz Model: 2402 – 2472 MHz 5 GHz Model: 4910 – 5970 MHz
Channel Width: 5 | 10 | 20 | 40 MHz
Proprietary Physical Layer: 2×2 MIMO/OFDM
Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
VLAN: 802.1Q with 802.1p priority
Quality of Service (QoS): Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

Cambium ePMP Product Solutions

ePMP Product Solutions for Point to Point (PtP) & Point to Multi-Point (PtMP) Deployments

Wondering how these products fit together and what combinations of kit will provide you with the best complete solution for your deployment? The bundles in this section provide solutions for short, medium and long-distance deployments, and all solutions are supported by Purdicom’s value-add, technical and professional services. We can help you with link planning, network design and much more.

ePMP 3000 Range – Gen 3 Product Bundles

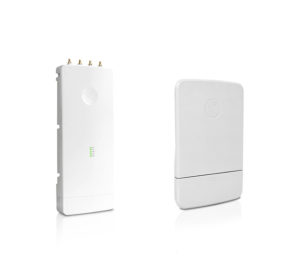

Cambium Networks Short Range ePMP 3000 Force 300-13

1. Short Range PtMP

3rd Generation ePMP Products for Short-Range

ePMP 3000 4×4 MU-MIMO AP with 90-degree sector antenna with Force 300-13 subscriber modules

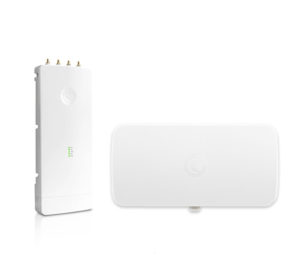

Cambium Networks Short-Med Range Bundle ePMP 3000 Force 300

2. Short to Medium Range PtMP

3rd Generation ePMP Products for Short-Medium Range

ePMP 3000 4×4 MU-MIMO AP with 90-degree sector antenna with Force 300-16 Subscriber modules

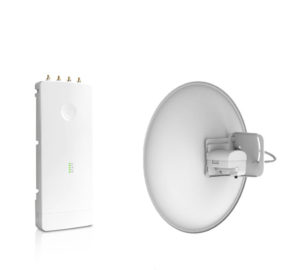

Cambium Networks Long Range ePMP 3000 Force 300

3. Long Range PtMP

3rd Generation ePMP Products for Long-Range

ePMP 3000 4×4 MU-MIMO AP with 90-degree sector antenna with Force 300-19/19R or Force 300-25 subscriber modules

All Force subscriber modules can also be used as PTP master and slave radios in a point-to-point deployment, e.g. Force 180 & Force 180, Force 300-16 & Force 300-16.

ePMP 2000 Range – Gen 2 Product Bundles

Cambium Networks Short Range ePMP 2000 Force130

1. Short Range PtMP

2nd Generation ePMP Products for Short-Range

ePMP 2000 2×2 AP with 90-degree sector antenna with optional beamforming uplink antenna for high-density deployments, coupled with Force 130 subscriber modules

Cambium Networks Short-Medium Range ePMP 2000 Force180

2. Short to Medium Range PtMP

2nd Generation ePMP Products for Short-Medium Range

ePMP 2000 2×2 AP with 90-degree sector antenna with optional beamforming uplink antenna for high-density deployments, coupled with Force 180 subscriber modules

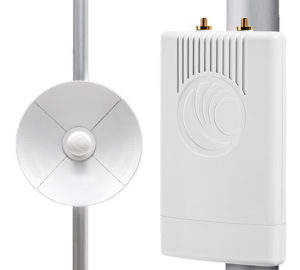

Cambium Networks Long Range ePMP 2000 Force190

3. Long Range PtMP

2nd Generation ePMP Products for Long-Range

ePMP 2000 2×2 AP with 90-degree sector antenna with optional beamforming uplink antenna for high-density deployments, coupled with Force 190 or Force 200 subscriber modules

All Force subscriber modules can also be used as PtP master and slave radios in a point-to-point deployment, e.g. Force 180 & Force 180, Force 300-16 & Force 300-16.

DOWNLOAD OUR FREE EPMP HOSPITALITY OPPORTUNITIES INFOGRAPHIC, HERE

Cambium ePMP Resources & Data Sheets

Cambium Networks ePMP Force 180 Data Sheet

The ePMP Force 180 is the second generation of ePMP Integrated Radio Modules. With exceptional reliability and quality, the ePMP F180 adds significant performance to the product line. Download the datasheet here.

DOWNLOAD
